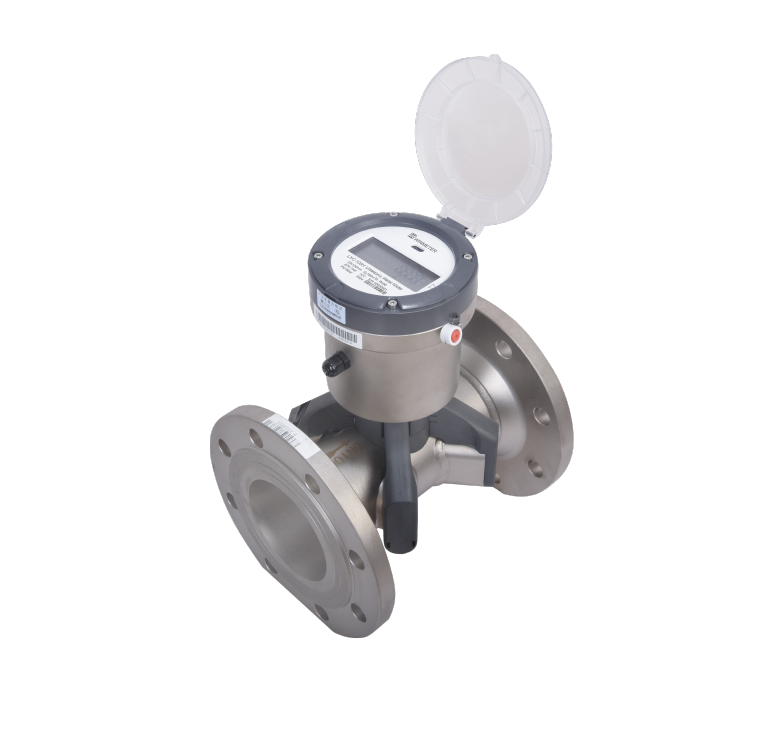

LXC-D

Ultrasonic bulk meter

•DN50~DN200, ultrasonic measurement

•IS0 4064/EN14154/0IML R49 Standard

•Low starting flow rate

•Class C or R400/R500,MAP16,P63,T50

•Large size dot-matrix LCD and backlight.

•AMR/AMI.Ultra-low power design

•battery separation for metering and communication

•Installation in any position, lP68 protection, suitable for outdoor installation

•10 year battery life time

•LTE OR GPRS network communication supportable

•Stainless steel corrosion-resistant material

Send inquiry

Items		Parameter
Medium		Full pipe of water, sewage, or homogeneous fluids
Accuracy Class		Class 2
Dynamic range		R250 R400 R500
Nominal Diameter		DN50~DN300
Maximum Admissible		1.0MPa/ 1.6MPa/ 2.5 MPa
Working Pressure		(Standard is 1.6MPa, only DN200 is 1.0MPa)
Pressureloss		△P10
Working Environment		-25°C~55°C, ≤ 100%RH
Temperature Class		T30,TS0,T70, default T30
Upstream Flow Field Sensitivity Class		U0
Field Sensitivity Class Category of Climate & Mechanical Environment Conditions		Class 0
Electromagnetic Compatibility		E2
Botton		Magnetic Induction Button
LCD Display		The upper LCD has 9 digits and a word height of 11.05 mm; the lower LCD has 9 digits and a word height of 8.53mm; prompt
Display Content		Cumulative volume (m3), Instantaneous flow(m'/h), Cumulative operating time (h), Date (Year/Month/Day), Time(Hour/Minute/Second), Software version, Water temperature (°C)
Display Resolution		Cumulative volume: -19999999.9m3~+ 199999999.9m3 Instantaneous flow: -99999.9m/h~+99999.9m/h
Communication		RS-485/M-Bus GPRS/ 4G
Data Storage		EEPROM applied for cumulative volume and time, automatically storage daily historical data and latest 24 months data, stored for 10 years in power failure
Measuring Cycle		1 second
Power Supply		Lithium battery powered DC3.6V, the battery works continuously for over 10 years DC10V~DC36V, ≥ 20mA (Specify while ordering)
Protection Class		IP68
Storage Temperature		-25°C-55°C
Installation Position		Water supply pipe
