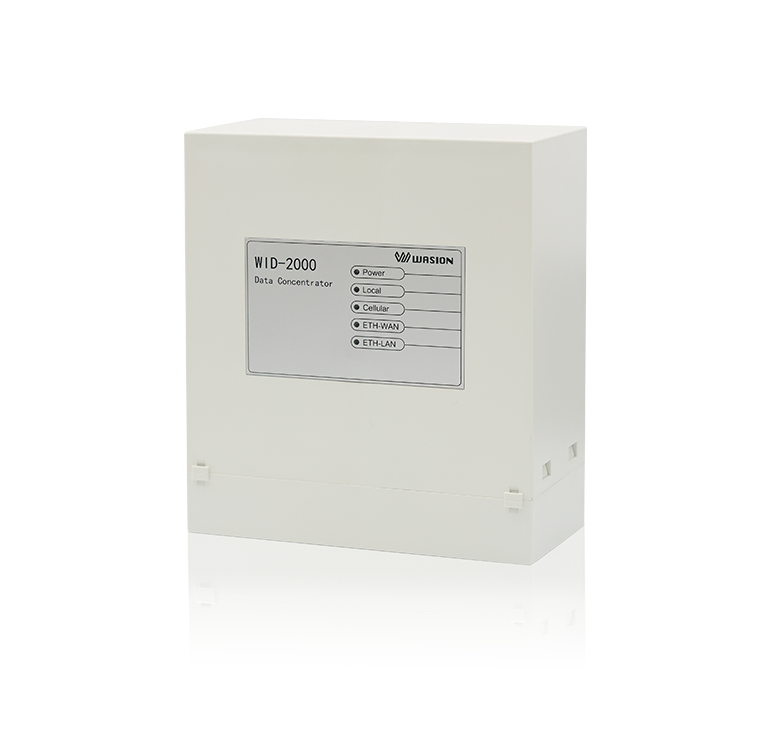

WID-2000

Data Concentrator

•Supports both concentrator and Gateway functionality

•Supports G3-PLC in downlink channel

•Interoperability is preserved by supporting DLMS/COSEM protocol both in uplink and downlink channels

•Both polling and pushing mechanisms are supported for data reading/event reporting

•Multi-layer security is considered both in G3-PLC-MAC layer as well as in DLMS application layer

•Integrated Web server for local and remote access

Send inquiry

Voltage		Reference voltage AC 230V/400V
		operating voltage range 70%-130%Un
Frequency		Rated frequency (fn) 50Hz or 60Hz
		Frequency range 47.5Hz to 52.5Hz or 57.5Hz to 62.5Hz
Electromagnetic Compatibility		Fast Instantaneous Pulse Group 4kV
		Fast transient burst main circuits 4kV
		Immunity to Impulse Voltage 6kV
		Electrostatic Discharge Contact discharge, 8kV, 10 cycles Air discharge, 15kV, 10 cycles
Temperature		Normal Operation range -25℃ to +55℃
		Limit operation range -40℃ to +70℃
		Limit range for storage and transport -45℃ to +85℃
Humidity		Up to 95% non-condensing
Protection degree		IP54
Lifetime		Product lifetime ≥ 15 years
		Battery lifetime 10 years
Dimension (W × H × D)		160 × 180 × 89 mm
Weight		1000g
